Form & Function
Expression of Truth & Beauty
This project applied the relationship between form and function to an already existing structure. This was done by adding in a multi-hinge household object and successfully integrating it with the 30'x40' bridge opening.
Span Prototypes & Diagrams
Sydney Harbour Bridge - Sydney, Australia Arch Bridge
Howrah Bridge - West Benegal, India Cantiliver Bridge
Minato Bridge - Osaka, Japan Double-Deck Cantiliver Truss Bridge
Movement Analogies
Open
Closed
Music Stand
Ice Cream Scooper
Eyelash Curler
Combination Table
Preliminary Design/
Transformation Process
The mechanism chosen for this project was an ice cream scooper paired with the Minato Bridge. The hinge is used to move the road outward on both sides of the bridge. The pulley systems are used in order to pull down the handle.

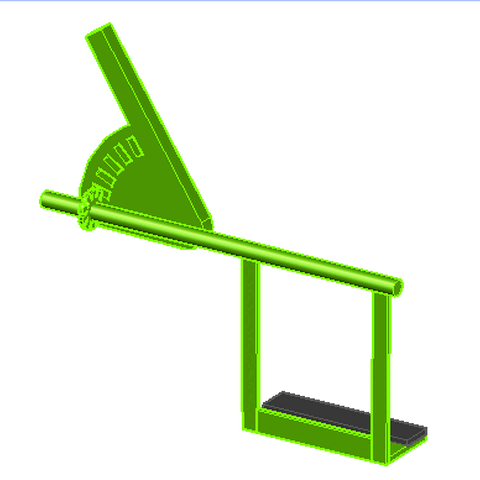

Final Design
Final 3D Animation
Moving Mechanism & Analogy
CLOSED
OPEN
